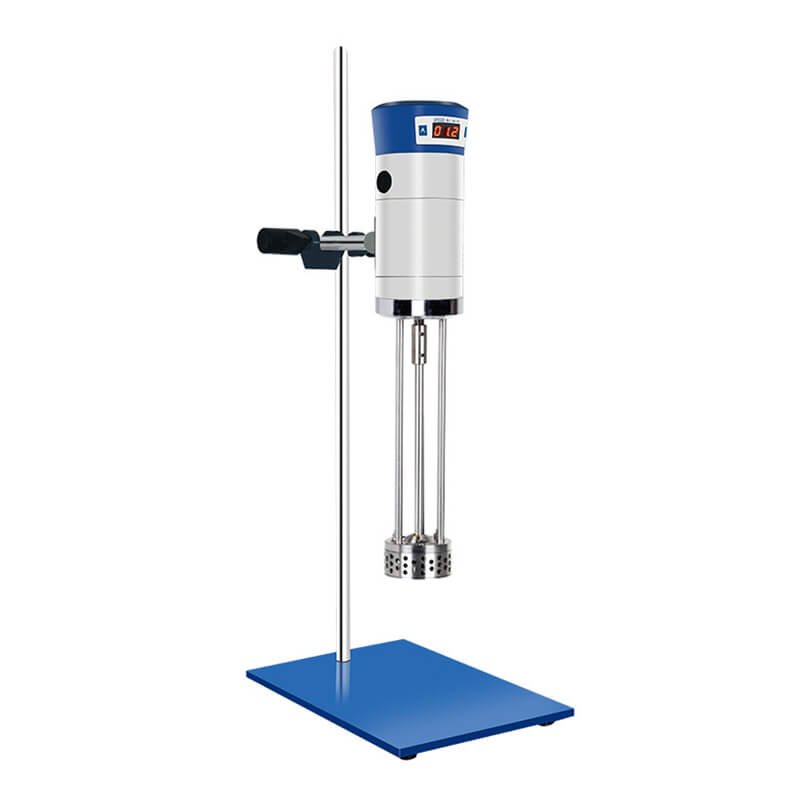

High-speed Homogenizer HOS-200D

High-speed Homogenizer HOS-200D

High-speed Homogenizer HOS-200D

Model: HOS-200D
Range of rotation: 2000-11000r/min
Maximum mixing volume: 40L
Input power: 510W
Output Power: 300W
Dimensions: 250x650x720mm
Using electric: AC 220 V 50 Hz
Rated torque: 34.1N.cm
Working head diameter: ф7omm
Stator configuration: 5mm²,20mm²,50mm²



1.The running state controller adopts a stepless speed regulator, and the digital display type adopts a touch structure, which is convenient for speed adjustment and correct data.
2. The drive motor adopts a series-excited micro motor with high output power and compact structure, and the design is safe and reliable.
3. The shearing and emulsifying mixing head is made of high-quality stainless steel, with good corrosion resistance, and easy to disassemble and assemble the interchangeable stator.
4. The shearing and emulsifying mixing working head is connected with the drive motor by a shaft joint, and it runs stably at high speed.
5. Suitable for the stirring and mixing of low to medium and high viscosity liquids in the laboratory or pilot plant, and the shearing and emulsification of crushed particles in the liquid medium .
