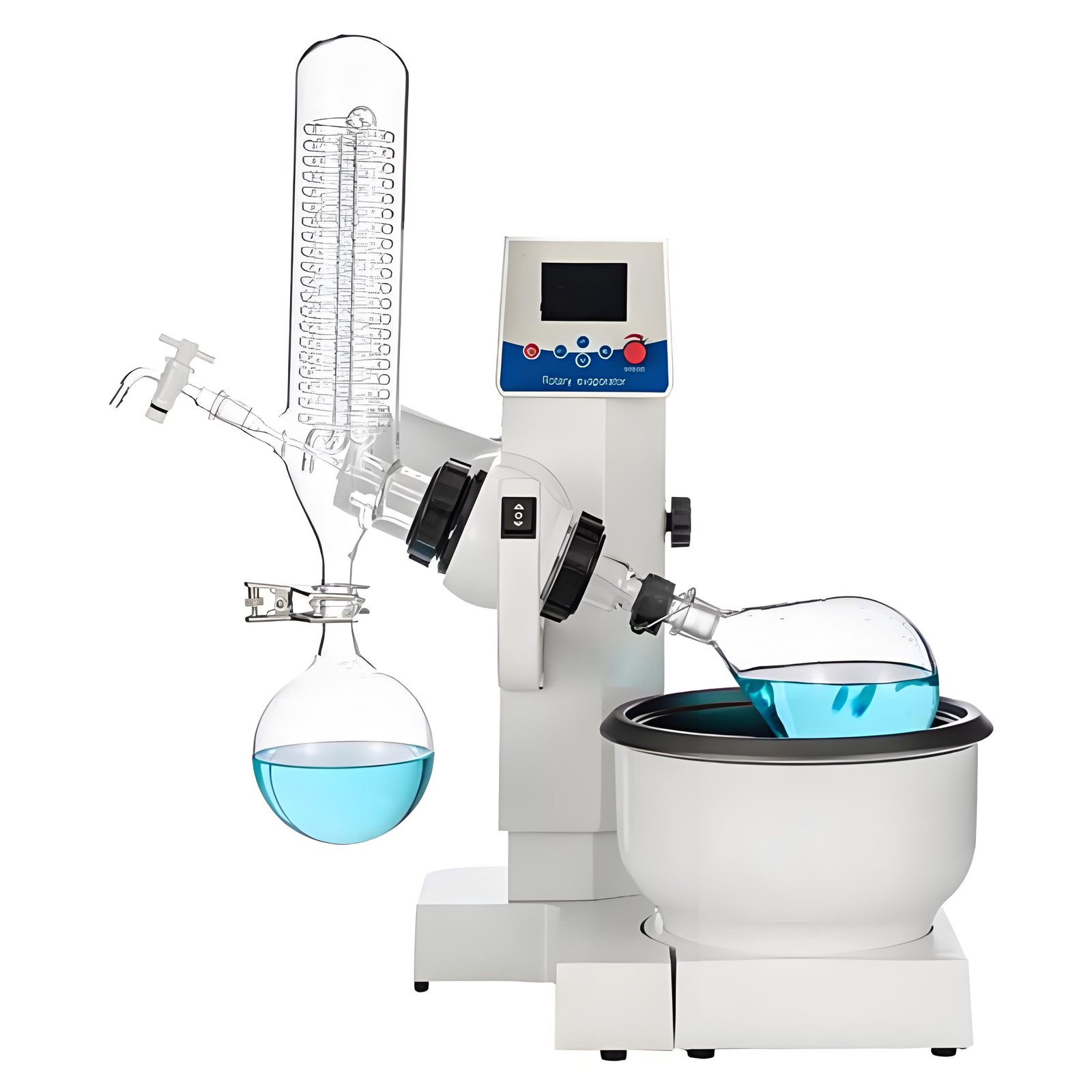

Rotary Evaporator ZF-E Series

Rotary Evaporator ZF-E Series

Rotary Evaporator ZF-E Series

A mean digital display, show temp

B means digital display, show temp and speed

E mean LCD display, brushless motor

1. The contact part with the material is all made of high borosilicate glass (expansion coefficient 3.3) and polytetrafluoroethylene material. The performance is stable and not easy to react with the material, so it is convenient and safe to use.
2. The main support is made of anti-rust aluminum alloy, which has compact structure, beautiful appearance and durability.
3. The sealing system adopts PTFE + fluorine rubber compound combined seal, which can maintain high vacuum degree.
4. The piston feeding valve is sleeved with a polytetrafluoroethylene extension tube, which can be continuously fed to the evaporation bottle in a vacuum state for convenient use by customers.
5. Integrated condenser, vertical double serpentine coil to ensure high recovery rate
6. Rotating, heating power switch control, ON-OFF operation is convenient.
7. The large liquid crystal display screen can display temperature and speed at the same time. It has stable performance, large visual angle and clear viewing.
8. Brushless rotary motor, no spark, low noise, smooth operation
10. The pot is made of aluminum alloy + Teflon composite pot, aluminum alloy heating plate, PT100 sensor, fast and accurate temperature transfer.
11. The main engine is electrically lifted and lowered, and the hand switch is raised and lowered by the raised button, which is easy to operate.
9. Electronic stepless speed regulation, by twisting fine tuning, simple and easy to operate
12. The rotating and heating double fuse has high safety protection performance.
13. LCD display, brushless motor



Model ZF-2000E ZF-3000E ZF-5000
Voltage 220V/50HZ
Machine Power 1260W 1260W 1560W
Rotary Motor Power 40W
Lifting Motor Power 20W
Heating Power 1200W 1200W 1500W
Vacuum 0.098Mpa
Rotating Bottle Capacity eggplant shape 1LΦ131mm/24#standard mouth 3LΦ195mm/Φ50 flange interface 5LΦ230mm/Φ50 flange interface
Collecting Bottle Capacity Spherical 1LΦ131mm/35#ball miller 2LΦ166mm/35#ball miller 3LΦ195mm/35#ball miller
Swing Speed 0-200rpm/min
Temp Range RT-99℃
Temp Accuracy ±1℃
Main Engine Lift Height 120mm 120mm 90mm
Condenser Size Φ85×430H(mm)  35# Ball grinding plug Φ100×530H(mm)  35#Ball grinding plug Φ100×530H(mm) Ball grinding plug
Condensation Area 0.17㎡ 0.26㎡ 0.26㎡
Charging Valve 19# standard plug valve,  feed nozzle (pagoda joint)size10mm
Vacuum Pumping Nozzle pagoda joint outer diameter10mm
Condensing Coil Inlet and Outlet Circulation Nozzle pagoda joint outer diameter 12mm
Pot Size /Capacity Φ235×145H(mm)   6.2L Φ255×155H(mm) 7.9L Φ275×160H(mm)   9.5L
Mechine Size 630×400×(690-810)mm (w*d*h) 690×490×(810-930)mm(w*d*h) 690×440×(825-915)mm(w*d*h)
N.W 18.5KG 21.5KG 30KG
Packing Size 620×620×490mm 620×620×490mm 615×485×650mm
G.W 23KG 26KG 48KG
