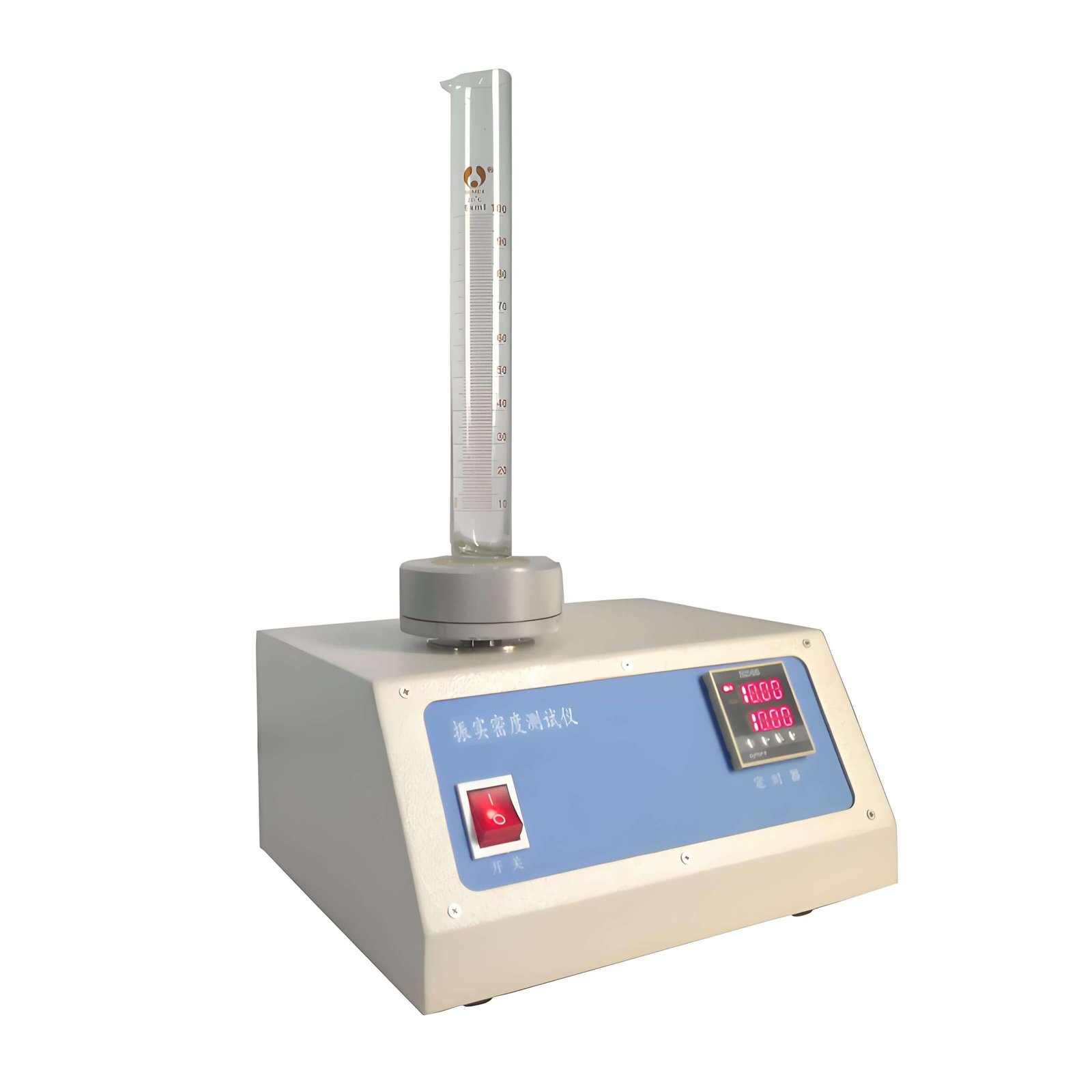

This tap density tester consists of a motor, a vibrating component, a timer, and other components. It allows for the customization of vibration frequency, and during the vibration process, the vibrating component rotates at a small angle to ensure uniform material distribution. The contact surface of the vibrating component is made of Luo 12 steel, which is durable and long-lasting.
1. Sample weight ≤500.00g
2. Dample volume ≤250ml
3. Number of vibrations per vibration : 0～14750
4. Allowable torque of motor：0.86 N.m
5. Vibration amplitude: 3mm
6. Repeatability error: ≤ 1%
7. Accuracy error: ≤ 1%;
8. Power: 220V(50Hz/60Hz)、40W
9.Shell: 304 stainless steel material
Note: If both the 250ML and 100ML standards need to be met, an additional set of vibration components must be purchased.
Configuration
| Item | Name | Specifications | Qty |
| 1 | main engine | HY-100D | 1 |
| 2 | Vibration assembly | HY-100D | 1 |
| 3 | Washer | Polyurethane | 4 |
| 4 | Measuring cylinder | 25ml | 1 |
| 50ml | 1 | ||
| 100ml | 2 | ||
| 250ml | 1 | ||
| 6 | power cord | 250V 10A | 1 |
| 7 | Fuse | 5 X 20mm，1A | 5 |
| 8 | Test tube brush | 1 | |
| 9 | Silicone pad | Ф70mmX2mm | 1 |
