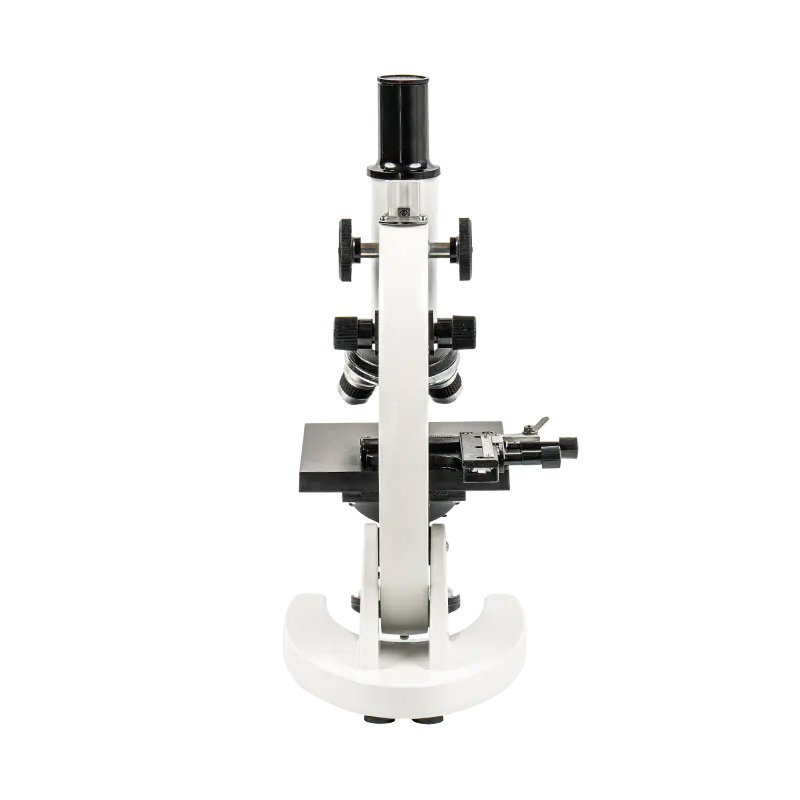

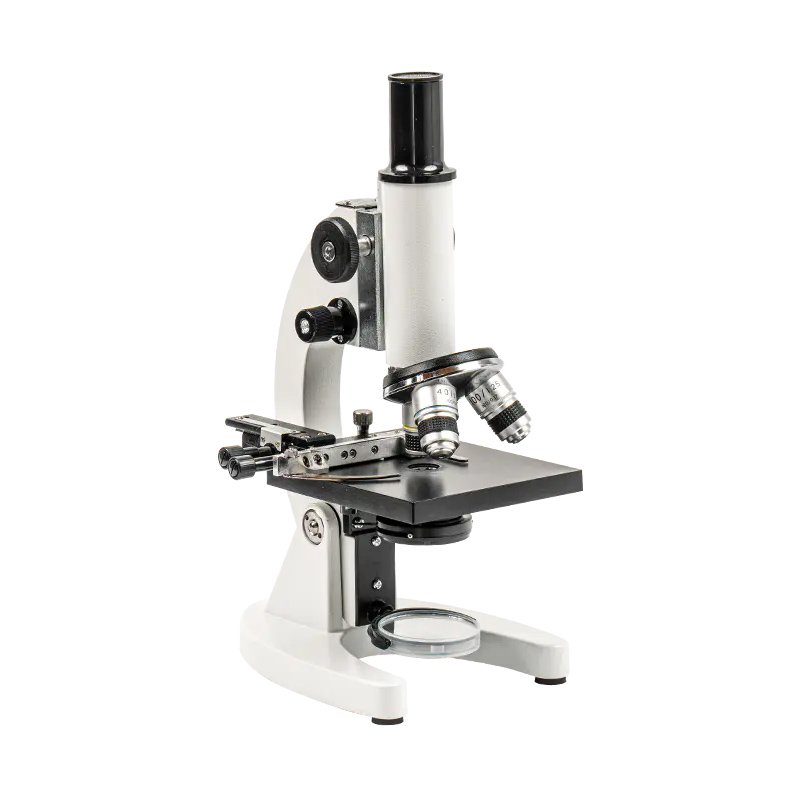

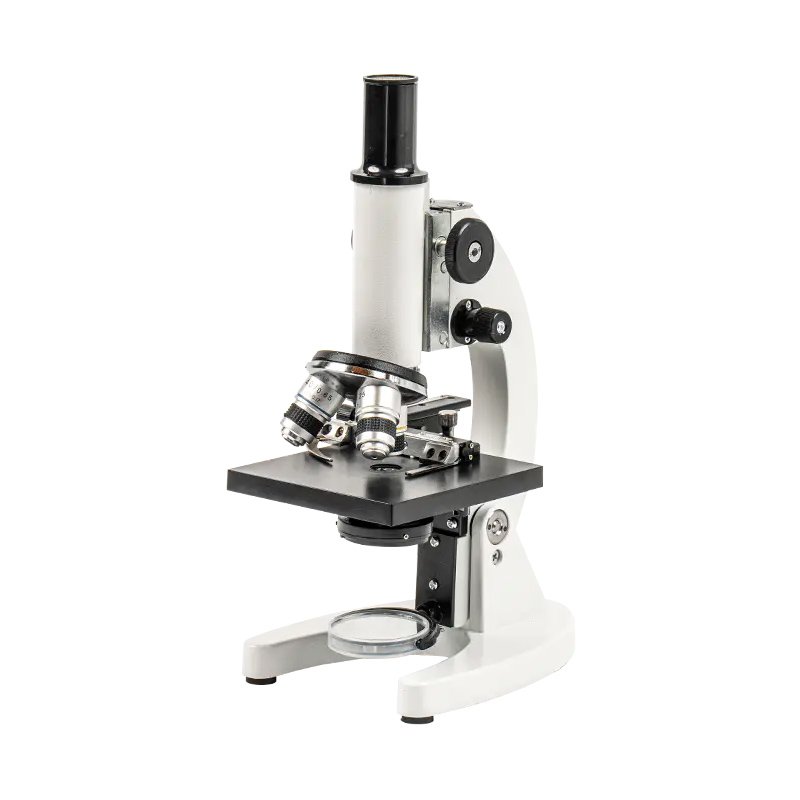

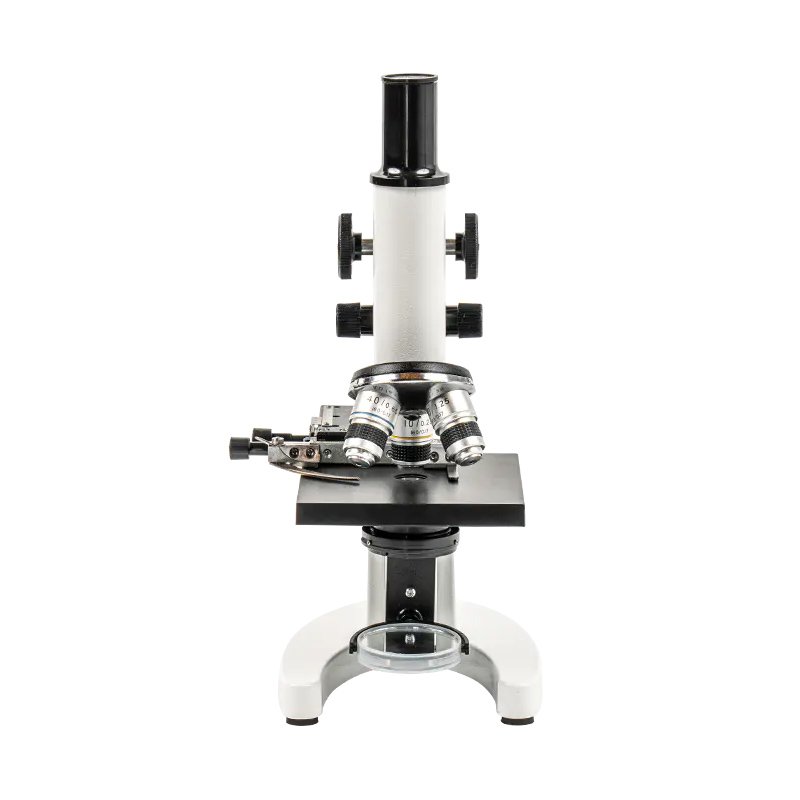

Monocular Bioligical Microscope 00 series –

Monocular Bioligical Microscope 00 series –

Monocular Bioligical Microscope 00 series –

Monocular biological microscope is a structurally simple microscopic device that only includes an eyepiece and an optical path. Suitable for beginners, especially younger ones, with easy operation and comprehension. In special application scenarios, such as quick browsing or sample screening, its single eyepiece can provide a faster browsing experience. Its economic viability makes it an ideal choice for schools with limited budgets or individual users with basic observation needs. It is recommended to adjust the focal length and light source correctly during use to ensure clear and accurate observation results. Overall, a monocular microscope is a professional, simple, and economical microscopic device suitable for various basic observation needs.

Specification Model
XWJ-03A XWJ-04A XWJ-05A XWJ-06A
Viewing head Monocular head
Huygens eyepiecesng head H5X、H10X
H5X、H10X、H12.5X
H5X、H10X、H15X
H5X、H10X、H16X
Achromatic objective 10X、40X、100X
Stage Plain Stage with moving scale; Stage size:120mm*120mm
Condenser N.A=1.25 Abbe condenser lris diaphragm&fliter
Coarse adjustment range 50mm
Fine Adjustment range 1.8-2.2mm
llumination Concave-plan reflector Ф50mm (extra led lam optional)
