Bioligical Microscope 116 Series

Bioligical Microscope 116 Series

Bioligical Microscope 116 Series

Biological microscope is a fundamental scientific instrument that uses optical principles to magnify and observe small biological samples, and is widely used in fields such as biology, medicine, and agriculture. Its core components include objective lens, eyepiece lens, stage, and light source system. Through multi-stage lens combination, the sample is magnified tens to thousands of times, making microstructures such as cells, bacteria, and tissue sections that cannot be distinguished by the naked eye clearly visible.

Specification Model
XWJ-116B XWJ-116D XWJ-116L
Achromatic objective 4X、10X、40X(spring)
Huygens eyepiecesng head Wide field eyepieces WF10X,(WF16X optional)

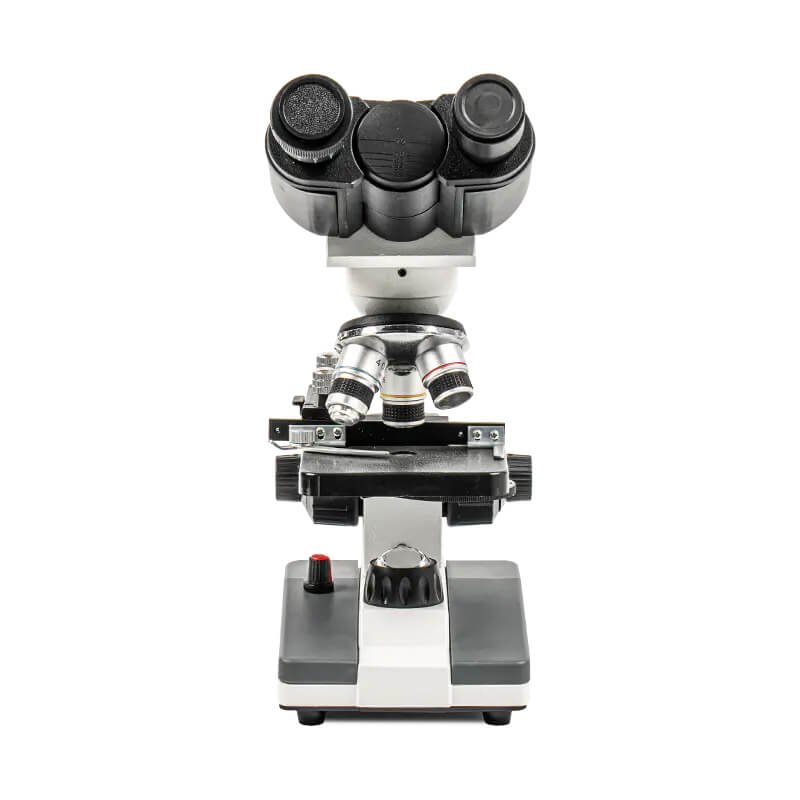

Viewing head Binocular head

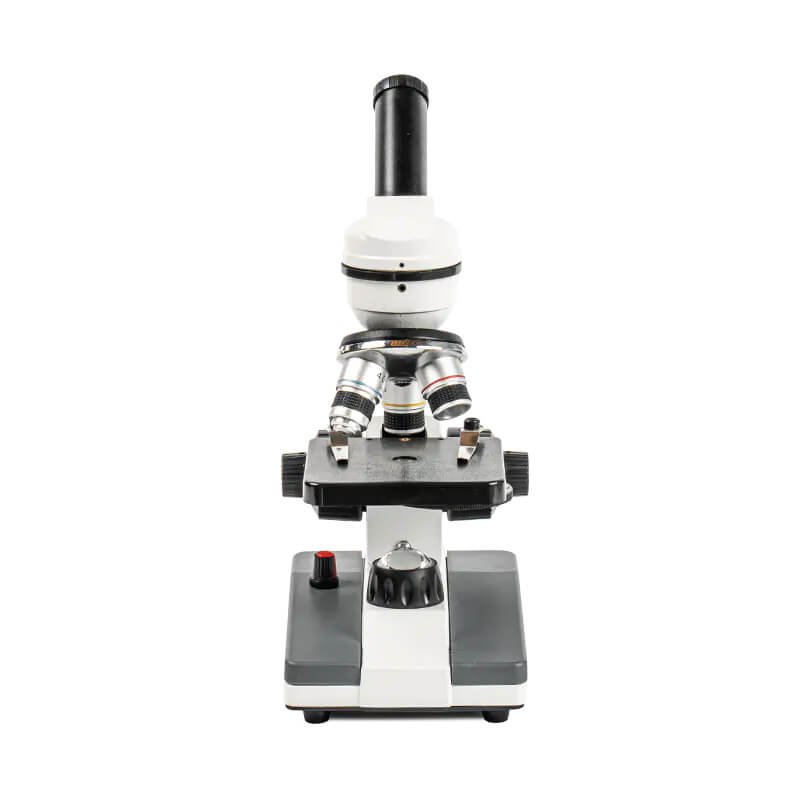

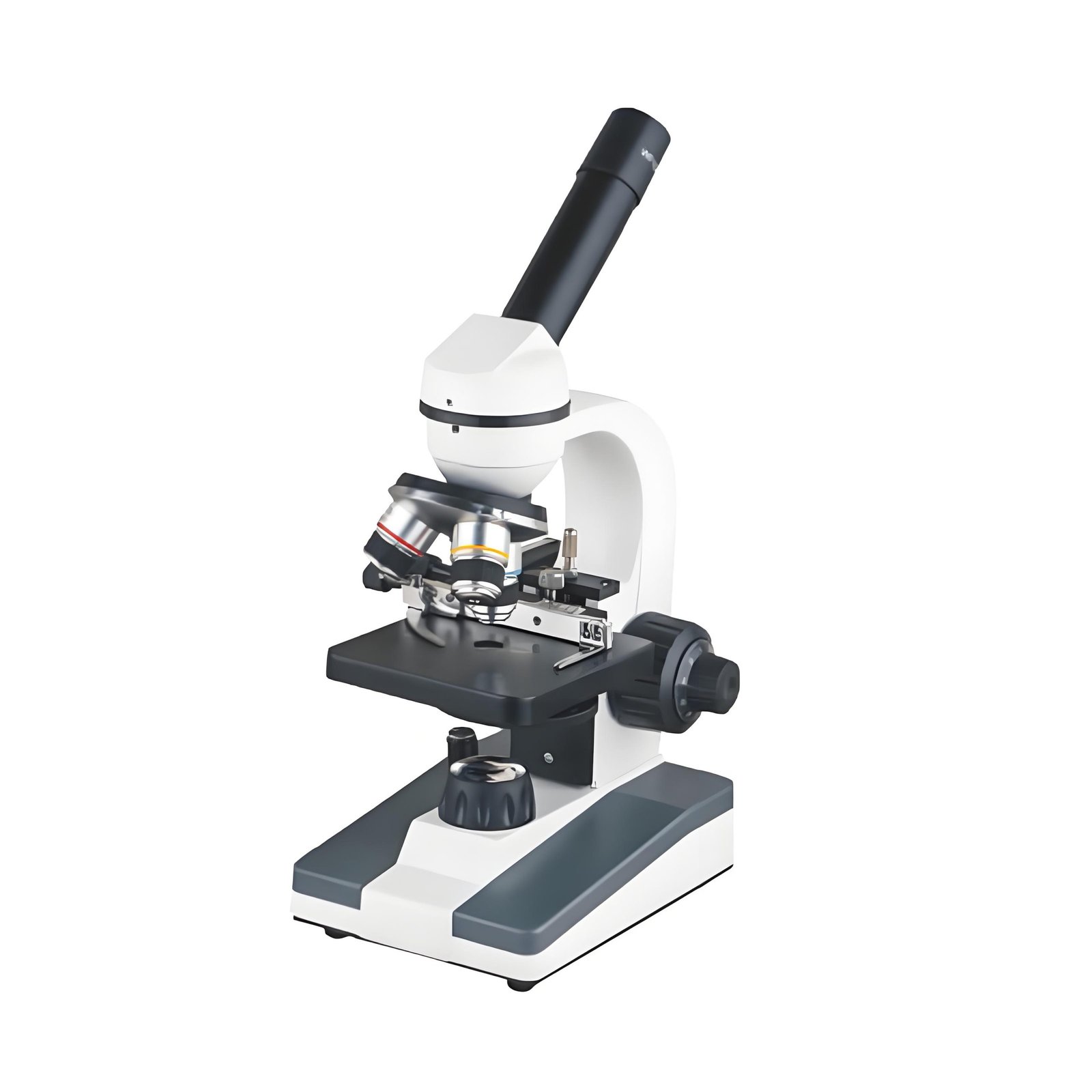

Monocular,Inclined at 45°
Stage Plain stage with moving scale,Stage size 90mmX90mm
Plain stage ,Stage size 90mmX90mm
Condenser N.A.0.65 Condenser with disc diaphragm N.A.0.65
Focusing Coarse and fine Adjustment
Power AC Input 220V or 110V.DC ouput 6V
llumination LED lamp (Chargeble optinal)
