| Model | JA200E | JA500E | JA220E |
| Capacity | 200g | 500g | 220g |
| Readability | 0.001g(1mg) | ||
| Min weighing(g) | 0.004g | ||
| Repeat ability | ±0.002g | ||
| Linearity | ±0.003g | ||
| Stable time | ≤3S | ||
| Operation temp | 5-25℃ | ||
| Pan size | φ80mm(standard) φ90mm(option) | ||
| Dimension | 300*200*395mm | ||
| Draft shield size | 180*175*200mm | ||
| LCD size | 94*24mm | ||
| Cal.weight | External calibration | Internal calibration | |
| G.W | 8kg | ||
| N.W | 6kg | ||
| Packing Size | 425*320*415mm | ||
| Interface | RS232(standard) USB/printer(option) | ||
| Sensor | EMF | loadcell | |

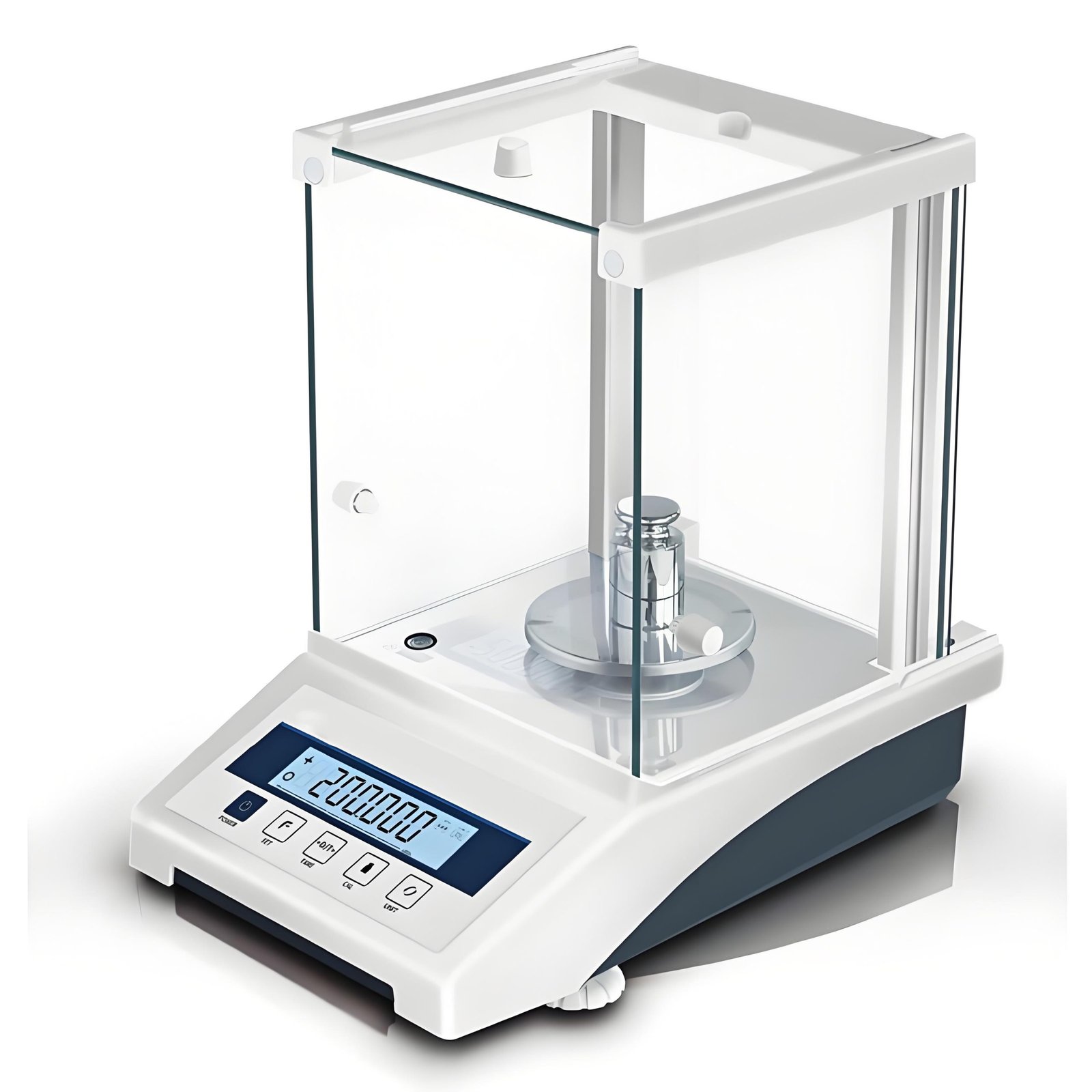

Precision Balance JA-E Series
JA200E/JA500E:
Electromagnetic force sensor
LCD (White back light with black font)
Tare function/Counting/Unit conversion/peak hold
Sensitivity/Speed set/Percentage
Print function(baud rate setting,Continuous
ommunication or press communication)
Overload alarm/Fault alarm/Level indicator
Option: USB/printer
Application:high precision data metching, gold jewelry,scientific experiment, medicine, precision counting
JA220E:
Internal auto calibration/Strain gauge sensor
LCD (White back light with black font)
Tare function/Counting/Unit conversion
Percentage/Sensitivity/speed set
Density/Peak holding
Print function(Baud rate setting,Continuous communication or press communication)
Calibration time setting
Overload alarm/Fault alarm/Level indicator
Option: USB/Printer/Dencity kit
