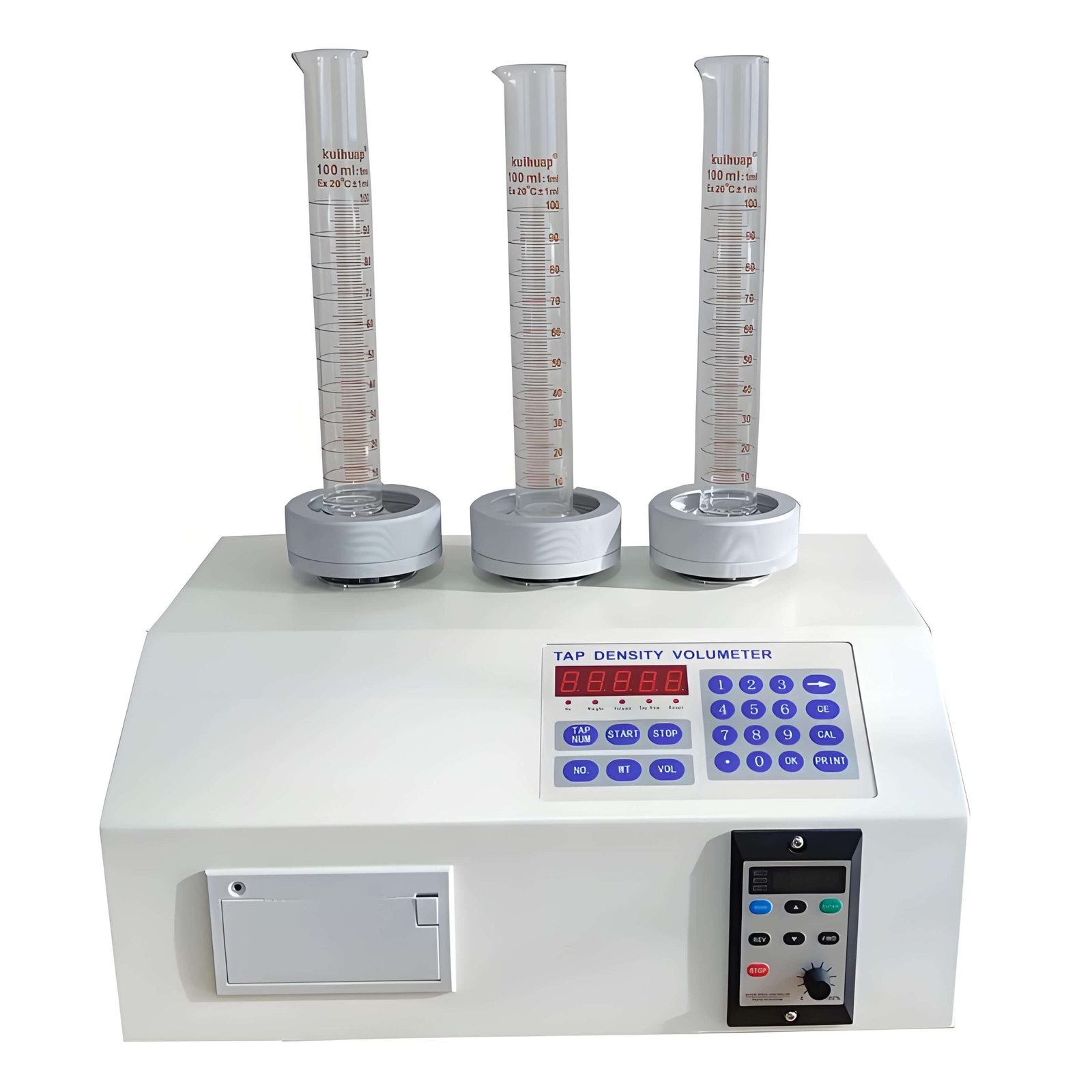

This tap density tester consists of components such as an adjustable-speed motor, vibration assembly, microcomputer, and micro printer. It allows for customizable amplitude and vibration frequency. During the vibration process, the vibration assembly rotates at a small angle to ensure uniform material distribution. It also features automatic calculation and printing of test results, and can test three samples simultaneously.

1. Sample weight ≤500.00g
2. Dample volume ≤100ml
3. Number of vibrations per vibration : 0～99999 (When set to 0 times, the result output is “loose density”)
4. Allowable torque of motor：0.86 N.m
5.Result output: with printing function
6. Vibration frequency: 0 ~ 300 rpm (continuously adjustable)
7. Vibration amplitude: maximum 15mm, integer 1-15mm adjustable;
8. Repeatability error: ≤ 1%
9. Accuracy error: ≤ 1%;
10. Power: 220V(50Hz/60Hz)、40W

Configuration
