| Model | BL-107BN2 |
| Magnification | 40X-2500X |
| Eyepiece | Ultra wide angle eyepiece WF10X WF16X WF25X |
| Objective lense | 195 achromatic objective lens 4X 10X 40X 100X |
| Focusing system | Coaxial Coarse Micro Focusing System |
| Lighting system | LED electric light source |
| Observing the head | Articulated three eyed head, 30 degree angled eyepiece tube, pupil distance 54-75mm |
| Carrier platform | Double layered mechanical activity platform |
| Converter | Four hole outward tilt converter |
| Power | AC100V-240V,50/60HZ |

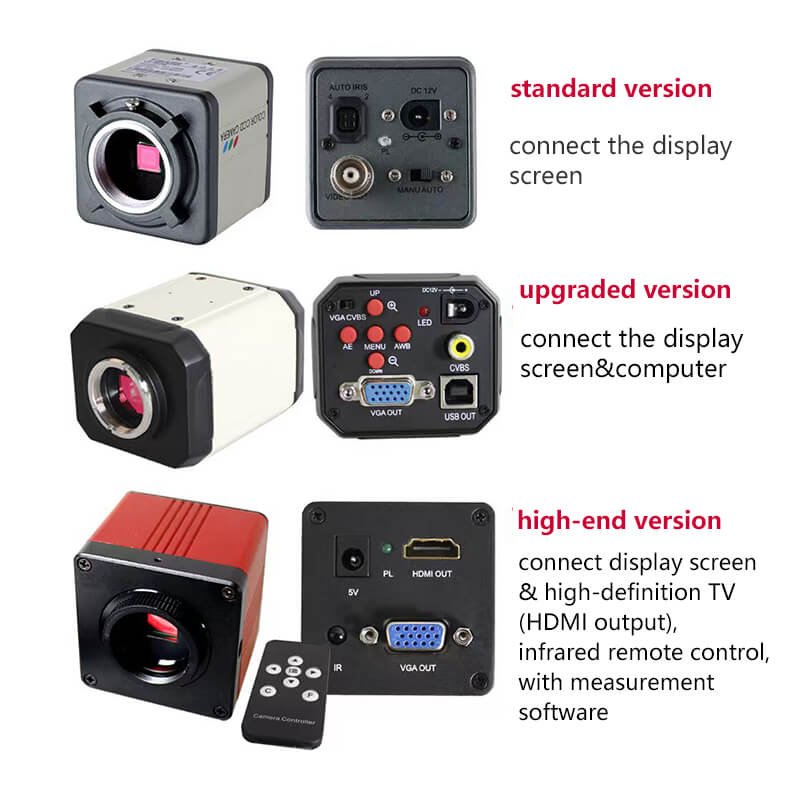

| External digital devices | Industrial camera (standard version, upgraded version, high-end version available) + 8-inch LCD screen |
| Material | Metal |
| Dimensions | 270X190X400mm |
| Weight | 8KG |
| Accessories | Observation head, main mirror, 6 eyepieces, 4 objective lenses, cedar oil, filter, power cord, dust cover, 8 bonus gifts |
Binocular Biological Microscope BL-107BN2
Biological microscope is a fundamental scientific instrument that uses optical principles to magnify and observe small biological samples, and is widely used in fields such as biology, medicine, and agriculture. Its core components include objective lens, eyepiece lens, stage, and light source system. Through multi-stage lens combination, the sample is magnified tens to thousands of times, making microstructures such as cells, bacteria, and tissue sections that cannot be distinguished by the naked eye clearly visible.
