1. low noise, can maintain a stable oscillation frequency for a long time.
2. stainless steel fixture, corrosion resistance, installation, remove the sample is simple and convenient.
3. A variety of sample racks can be selected to meet various inspection requirements.
4. Using seven proprietary technologies independently developed, the whole machine is more stable and the mechanism is more compact.
5. Using advanced SS-type asynchronous oscillation, different from the synchronous oscillation method commonly used in the market, which is similar to the pile driver type, so that thewhole machine will not produce displacement even when the Z high oscillation frequency is used, and the operation is stable.
6. the use of brand quality movement, guide rail, stable and reliable quality

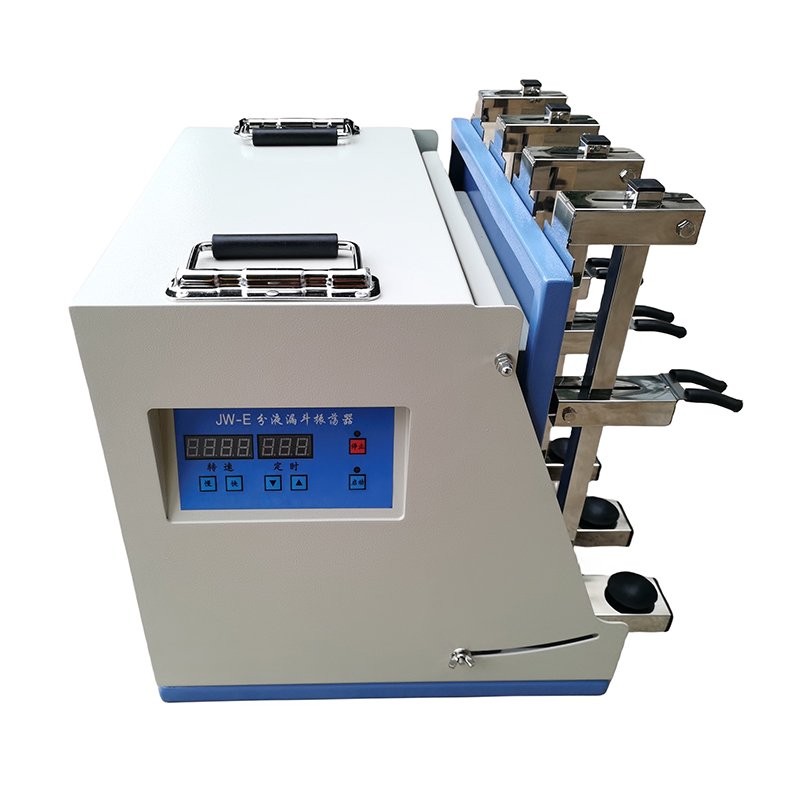

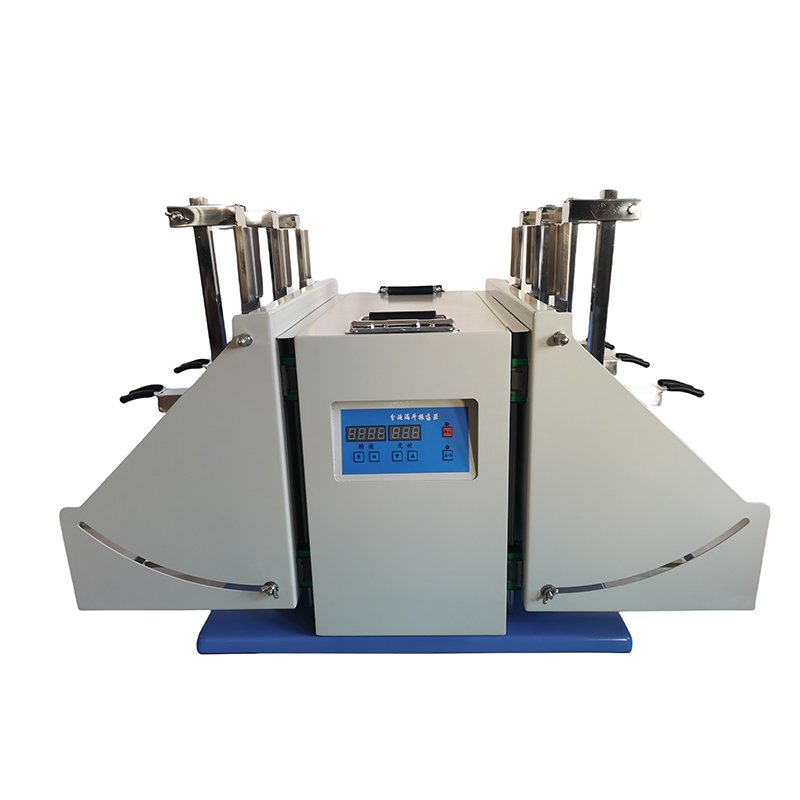

| Model | JW-E | JW-Q | JW-45 |
| Sample Number | ≤500ml*4/ ≤1000ml*3/ ≤2000ml*2 |
≤1000ml* 6/*8/*10 （≤2000ml* 4/*6/*8） |
≤2000ml *6*4/*8 optional）（or≤1000ml *6/*8/*10 optional） |
| Oscillation Amplitude | 40mm | ||
| Oscillation Frequency | 0~300 times / min（or 350 times / min, optional ) | ||
| Frequency Control | digital display, stepless speed change, microcomputer control ( or liquid crystal display optional ) | ||
| Temperature Range | \ | RT ~ 75 °C ( or with compressor version optional temperature control range is wider : 5 °C ~ 75 °C ). | \ |
| Temperature Accuracy | \ | ± 1 °C ( or ± 0.5 °C high-precision optional ). | \ |
| Oscillation Mode | vertical oscillation or inclined oscillation (0 ~ 22° ),（or vertical oscillation optional） | vertical oscillation | vertical oscillation or inclined oscillation (0~45° ),（or vertical oscillation optional） |
| Timer | 0~999 min | ||
| Applicable to | 60ml、125ml、250ml、500ml、1000ml, 2000ml separating funnel, bottle with stopper、etc. (optional different types of specialized fixtures） | ||
