Applicable Industries： medicine packaging, Medical equipment, food packaging, daily chemical packaging and other industries.
Test Item
1. Leakage detection of sealing quality; 2. Leakage detection of bags; 3. Micro leakage detection; 4. Bottle/container detection; 5. Inspection of aluminum bubble wrap; 6. Packaging integrity test. 7.CO2 leakage test
The instrument can be used for the following tests：
The sealing tester is applied to the package of the medicine bubble cap：Powder, tablet, capsule, contact lens, etc.
Small ceiling packing：aluminum plastic composite bag, granule packaging, small amount of powder packaging.
closed container：Sealing test of sealed containers of any shape, material and size, such as cillin bottle, ampoule bottle, syringe, oral liquid, aseptic bag, infusion bag/bottle, water injection, powder injection, BFS bottle, API bottle, BPC bottle, FFS bottle, and other closed containers of any shape, material and size.
Microcomputer control and one-button start make the testing simple and convenient. The microcomputer integrated circuit control ensures a programmed and automated testing process
The system uses digital presetting of test vacuum degree and vacuum holding time to ensure the accuracy of test data
Using SMC imported pneumatic components, the performance is stable and reliable
Automatic constant pressure air compensation further ensures that the test can be conducted under preset vacuum conditions
The professional software supports automatic backflush unloading and automatic test termination functions, ensuring the smooth progress of the testing process

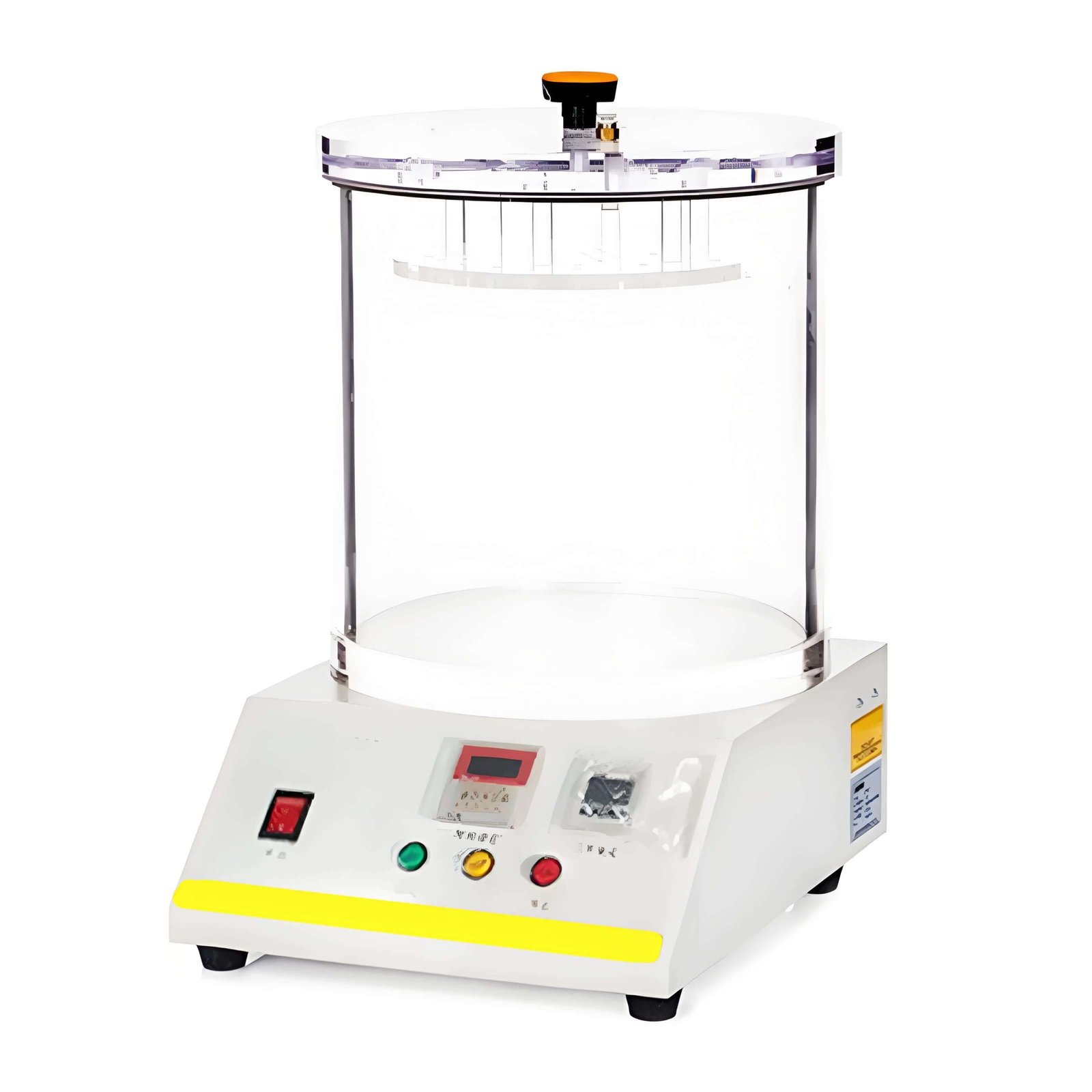

Imported thickened (15mm thick) acrylic sealed buckets have a long service life (ordinary acrylic sealed buckets will break after just a few tests)
The preset digital test vacuum degree and vacuum holding time ensure a stable and rapid formation of a vacuum test environment with higher vacuum degree, guaranteeing that it can reach above -90KPa
Test principle: By vacuuming the vacuum chamber, the pressure difference inside and outside of the sample immersed in water was produced, and the gas inside the sample was observed to determine the sealing performance of the sample; By vacuuming the vacuum chamber, the pressure difference inside and outside of the sample was produced, and the shape recovery of the sample after expansion and release of the vacuum was observed to determine the sealing performance of the sample.
Technical Parameters
Vacuum degree：0～ -90kPa
Precision：Level 1
Effective size of vacuum chamber：
Φ270mm×160 mm (H) （Standard configuration）
Φ270mm×260 mm (H) （Standard configuration）
Standard configuration offers two sizes to choose from.
Φ270mm×400 mm (H)（Customized）
Φ370mm×260 mm (H)（Customized）
Φ470mm×260 mm (H)（Customized）
Note: Other sizes can be customized
Gas pressure：0.7MPa
Air connection：Φ6mm Polyurethane tube
Outline dimension：300mm(L)×380mm(B)×510mm(H)
Power：AC 220V 50Hz
Net weight：15kg
