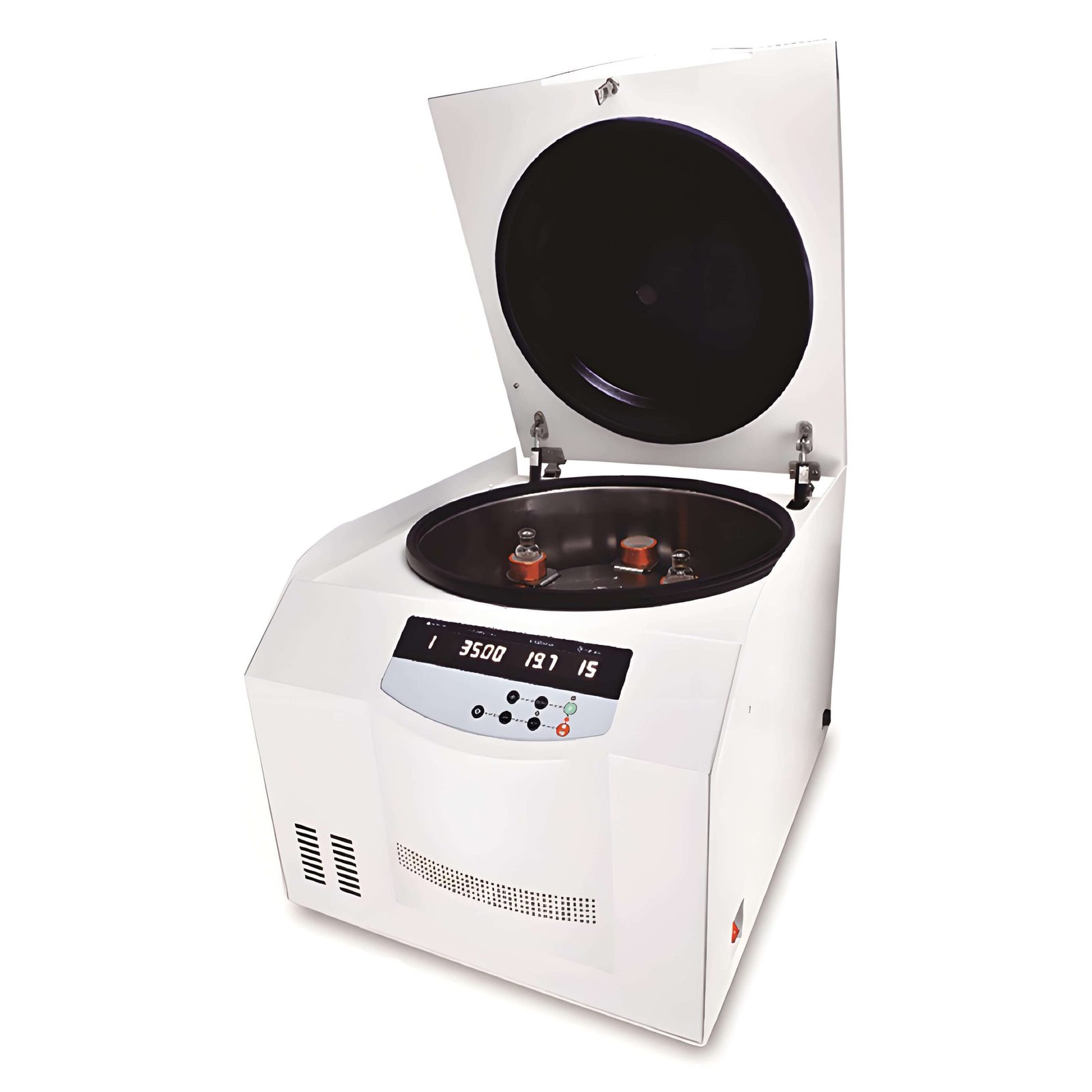

Oil Centrifuge TD5Y

Oil Centrifuge TD5Y

Oil Centrifuge TD5Y





1. Microcomputer control, touch panel, LCD display, automatic memory of operating parameters, RCF direct start, convenient operation and use
2. High torque brushless variable frequency motor drive, European imported ultra high speed bearings, smooth operation, maintenance free
3. Multi layer vibration reduction structure, low vibration and noise, environmentally friendly
4. Steel body, stainless steel centrifugal chamber, imported key components, corrosion-resistant, easy to clean, durable
5. Protection functions such as over temperature, over speed, door cover, and imbalance, as well as life calculation functions for the main engine and rotor, ensure safety
6. Exclusive high-power heating design, fast heating up; Exclusive SCT speed control technology, fast acceleration and deceleration, time-saving and efficient
7. From 0 to 9 levels, there are 10 different lifting speeds to choose from or directly input the lifting speed time. It can store 40 custom working modes to achieve optimal centrifugation
8. Made according to the requirements of GB/T6533-86 standard, it is an ideal separation equipment for moisture determination in the petroleum extraction industry and research units.

Model TD5Y
Max Speed 4000r/min
Max RCF 3100xg
Max Capacity 8x15ml;4x100ml
Temperature Range RT+10℃~80℃;
Temp Accuracy:±2℃
Time Range 0-99min
Power AC220V 50HZ 20A
Noise ≤58dBA
Dimension 520x550x480mm
Weight 85kg
