UV Analyzer

UV Analyzer

UV Analyzer

This instrument consists of one set of quartz ultraviolet lamps with wavelengths of 254nm and 365nm respectively, as well as a color filter. For the sampling and positioning illumination of the chromatography plate, there is also a regular fluorescent lamp installed inside the seat. The whole machine has a simple structure, is lightweight, has strong universality of parts, and is easy to use and maintain



1. It is a necessary instrument for detecting many major substances such as proteins, nucleotides, etc. in scientific experimental work.
2. In drug production and research, it can be used to check the quality of various fluorescent drugs such as hormone alkaloids, vitamins, etc. It is particularly suitable for thin layer analysis, paper layer analysis spot and detection.
3. In the chemical industries such as dye, coating, rubber, and petroleum, various fluorescent materials, fluorescent indicators, and additives are measured to identify different types of crude oil and rubber products.
4. In textile chemical fibers, it can be used to determine different types of raw materials such as wool, silk, synthetic fibers, cotton, synthetic fibers, and to check the quality of finished products.
5. In the grain and oil, vegetable, and food sectors, it can be used to check the quality of toxins (such as aflatoxin), food additives, spoiled vegetables, fruits, chocolate, fat, honey, sugar, eggs, etc.
6. It can also be used for certification and identification by public security departments.

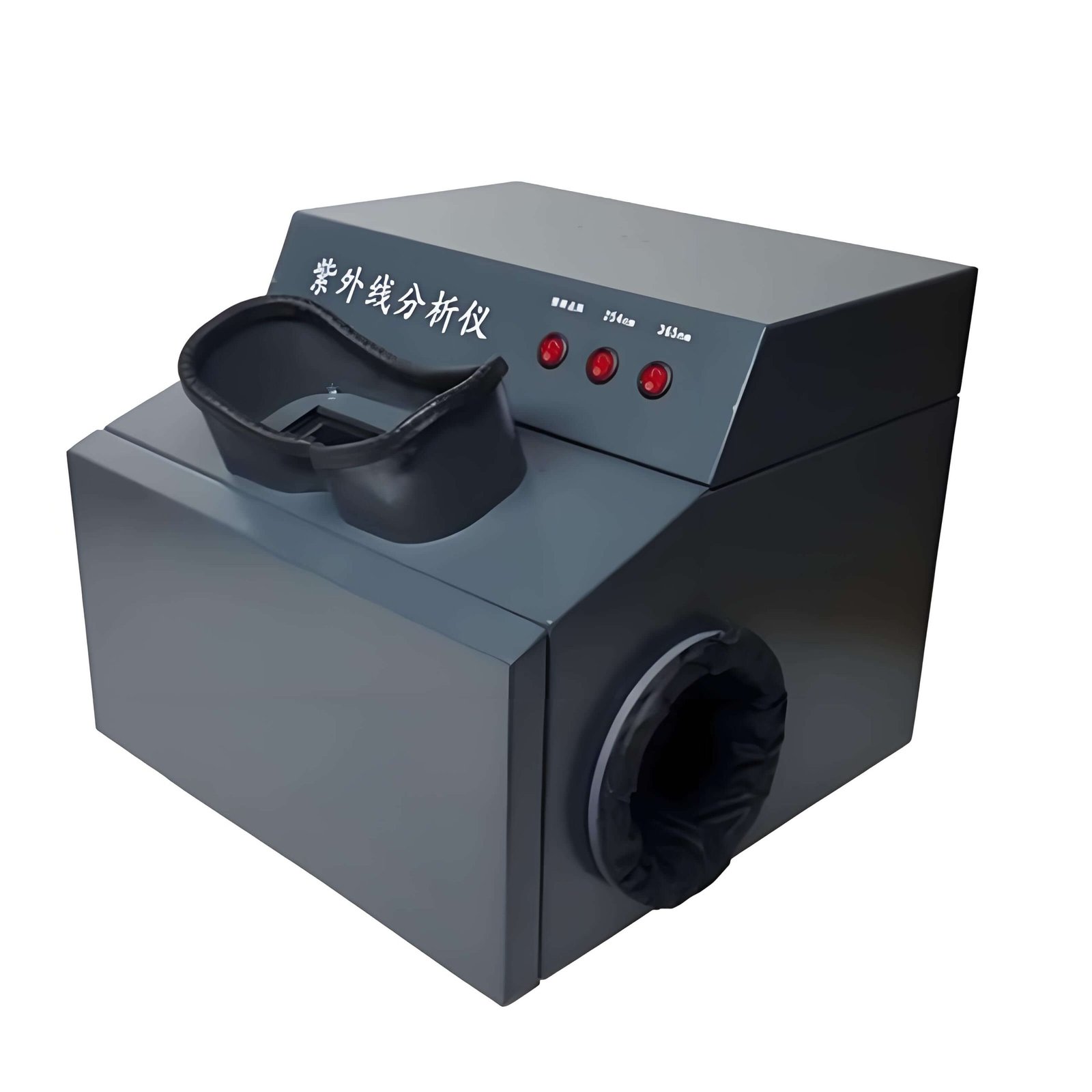

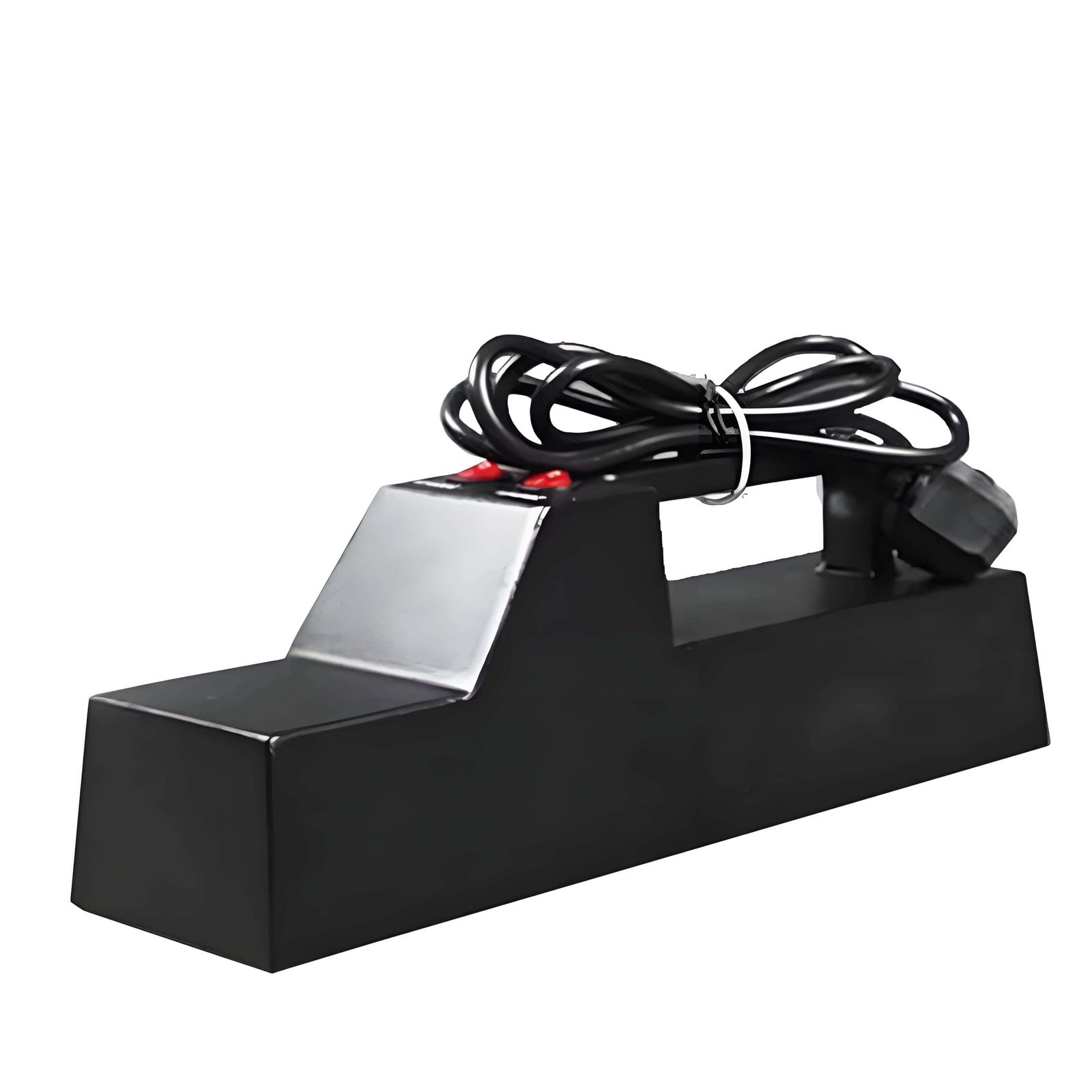

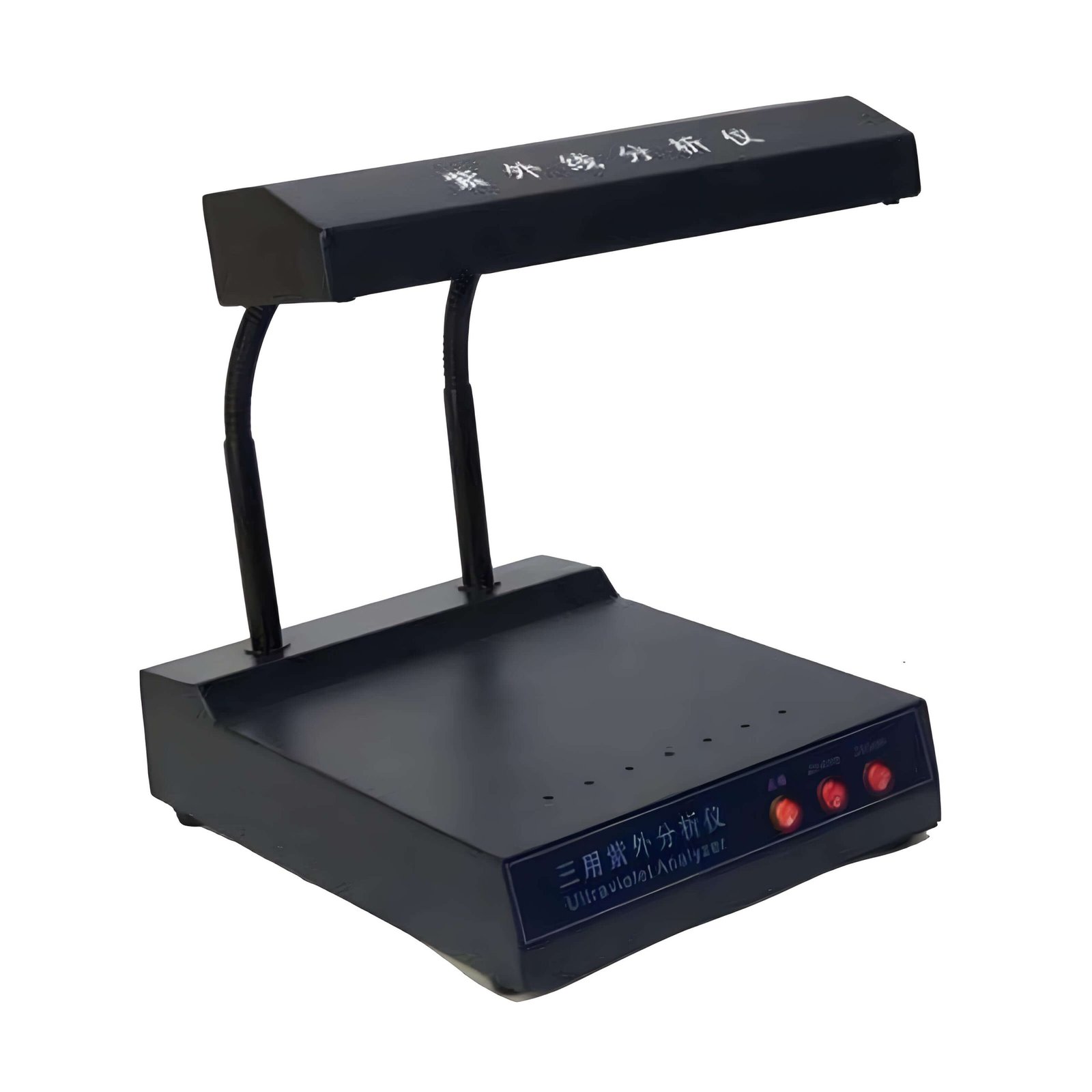

Model ZF-1 WFH-204B WFH-203B
Ultraviolet wavelength 254nm、365nm 254nm、365nm 254nm、365nm
UV filter size 50mm×200mm 50mm×150mm 50mm×150mm
Power AC220V±10%    50Hz AC220V±10%    50Hz AC220V±10%    50Hz
Lamp tube pressure 50V±10V 50V±10V 50V±10V
Weight 3.7Kg 1.4Kg 6.1Kg
