Features
Excellent optical system ensure low noise and Low stray light
High speed MCU, high precision AD, large storage capacity
Large LCD display (320*240 Dots)
High quality grating, detector and lamps
Data and Curve can be stored in real-time
Auto setting WL, auto Blank
Lamps can be turned on/off individually
Easy to change Pri-aligned lamps
Reinforced baseboard and bracket assures durability
Function:
Photometric: T%, Abs
Quantitative: Standard Curve
WL Scan (Spectrum Scan)
Time Scan (Kinetics)
DNA/Protein Test
Multi-WL Test
System Utility

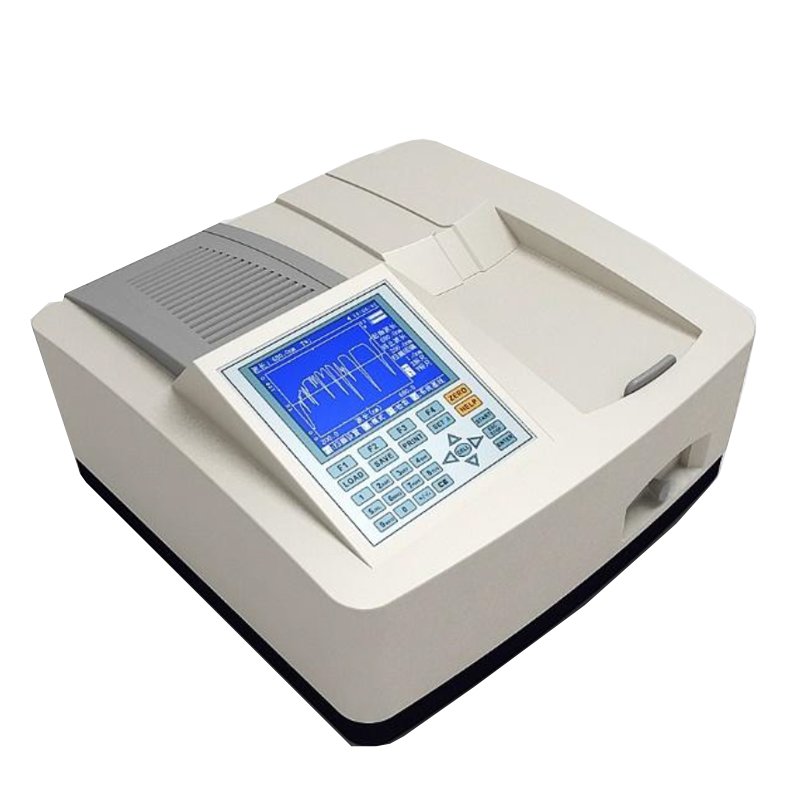

| Model | DUVS-2600DN |
| Wavelength Range | 190-1100nm |
| Spectral Bandwidth | 1.8nm |
| Optical System | Double Beam, Blazed Holographic Grating (1200 lines/mm) |
| Wavelength Accuracy | ±0.5nm |
| Wavelength Repeatability | ≤0.2nm |
| Wavelength Setting | Auto, Resolution 0.1nm |
| Photometric Range | 0~200%T, -0.3~3A, 0~9999C |
| Photometric Accuracy | ±0.002A (0~0.5A), ±0.004A (0.5~1A), ±0.3%T (0~100%T) |
| Photometric Repeatability | ≤0.001A (0~0.5A), ≤0.002A (0.5~1A), ≤0.2%T (0~100%T) |
| Stray Light | ≤0.05%T(220/360nm) |
| Scan Speed | High, Medium, Low. Max.3000nm/minute |
| Baseline Flatness | ±0.002A |
| Stability | ±0.001A/h (500nm,0A) |
| Noise | ≤0.2%T/3min (250/500nm,0%T); ≤0.4%T/3min (250/500nm,100%T) |
| Sample Compartment | Accommodate 5-100mm Pathlength Cuvette |
| Detector | Silicon Photodiode |
| Lamps | Tungsten Lamp & Deuterium Lamp (Pre-aligned) |
| Display | Graphic LCD (320×240 Dots) |
| Keypad | 30-key Alphanumeric Membrance Keypad |
| Output Port | USB Port & Parallel Port |
| Printer | Mini Printer (Optional); PC Printer (Optional) |
| PC Software | PC Software (Optional) |
| Power Requirements | AC 90-250V，50/60Hz |
| Dimension | 545x468x245mm |
| Weight | 18kg |
