| Model | NDJ－5S | NDJ－8S | NDJ－1S | NDJ－4S |
| Measurement range | 1~100,000 | 1~2,000,000 | 1~100,000 | 1~2,000,000 |
| Rotation speed (rpm) | 6,12,30,60 | 0.3,0.6,1.5,3,6,12,30,60 | 6,12,30,60 | 0.3,0.6,1.5,3,6,12,30,60 |
| Number of rotors | 4 types (L1-L4) | |||
| Measurement accuracy | ±1%(FS) newtonian fluid | ±5% relative error | ||
| Repeatability | ±0.5%(FS) newtonian fluid | ±1% relative error | ||
| Power | special power adaptor (input 100-240V/50-60Hz) | |||
| L0 rotor (optional) Measurement range (mPa.s) |
1~100 | 1~2000 | 1~100 | 1~2000 |

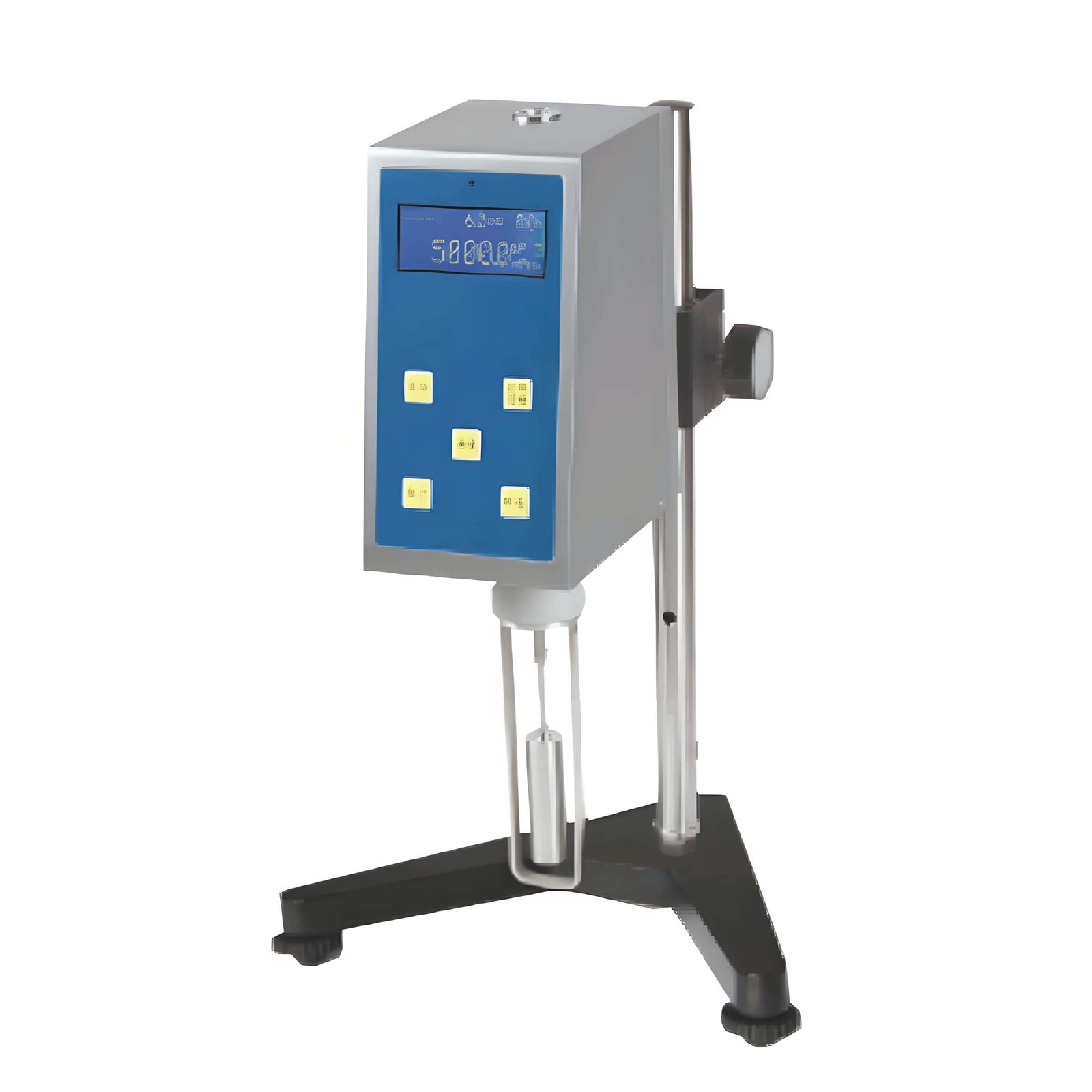

Digital Viscometer NDJ Series
The NDJ series digital viscometer adopts a 16 bit microprocessor control circuit, which directly displays viscosity, speed, torque, rotor number, and measurable maximum viscosity value. It can be optionally equipped with a printer and RTD temperature probe.
