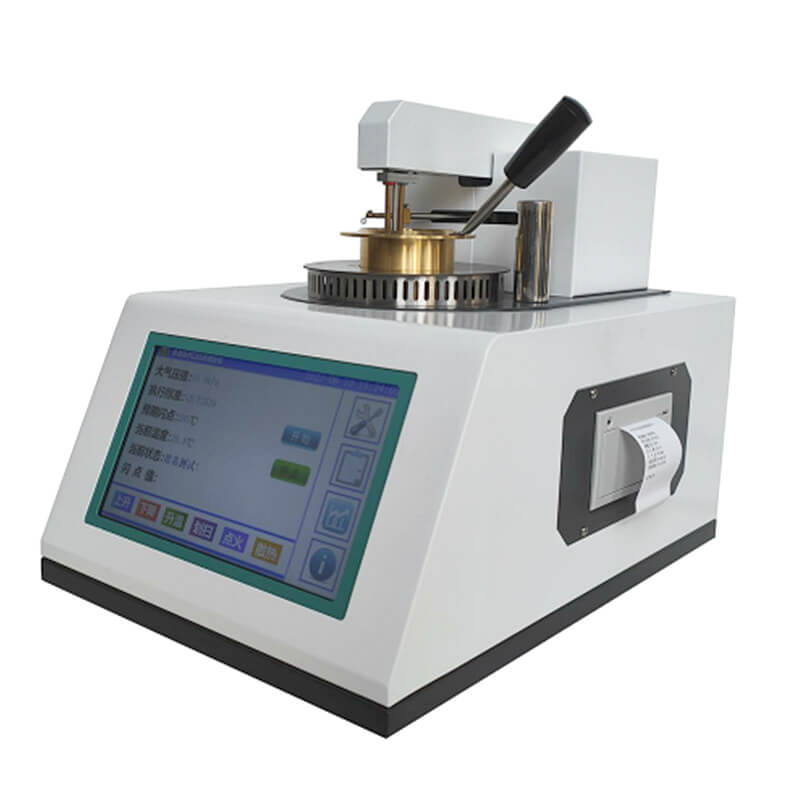

Fully Automatic Open Flash Point Tester BBK-1001

Fully Automatic Open Flash Point Tester BBK-1001

Fully Automatic Open Flash Point Tester BBK-1001

This fully automatic open flash point and ignition point tester is manufactured according to the standard methods of GB267 “Determination of Flash Point and Ignition Point of Petroleum Products (Open Cup Method)” and GB3536 “Determination of Flash Point and Ignition Point of Petroleum Products (Cleveland Open Cup Method)”. It is an ideal instrument for open flash point testing in petroleum, chemical, power, environmental protection, railway, scientific research and other departments.

1. Adopting high-speed signal processor control and adaptive PID control algorithm, automatically adjusting the heating curve according to standard requirements;
2. Equipped with an automatic atmospheric pressure detection chip, atmospheric pressure is automatically measured, calibrated, and the flash point value is automatically corrected;
3. Data storage function, capable of storing 1000 results and allowing for easy access to historical records at any time;
4. Differential detection, automatic correction of system deviation, automatic stop detection and alarm for temperature exceeding the limit;
5. Automatic measurement of ignition, detection, alarm, cooling, and printing instruments is completed;
6. Safe without gas source, platinum alloy electric heating wire ignition method, safe, stable, reliable, high testing accuracy;



Model BBK-1001
Display 10.1-inch touch screen
Measurement method thermocouple differential detection method
Display range -59.9~400℃
Measurement range RT -400 ℃
Repeatability ± 4 ℃
Printer high speed thermal printer, 56mm paper width
Ignition method automatic electronic ignition
Temperature detection imported precision platinum resistor
Self checking function printer detection arm lifting, ignition rod sweeping, etc
Dimensions 450 × 280 × 290mm
Power AC220V ± 10%
Weight 15kgs
