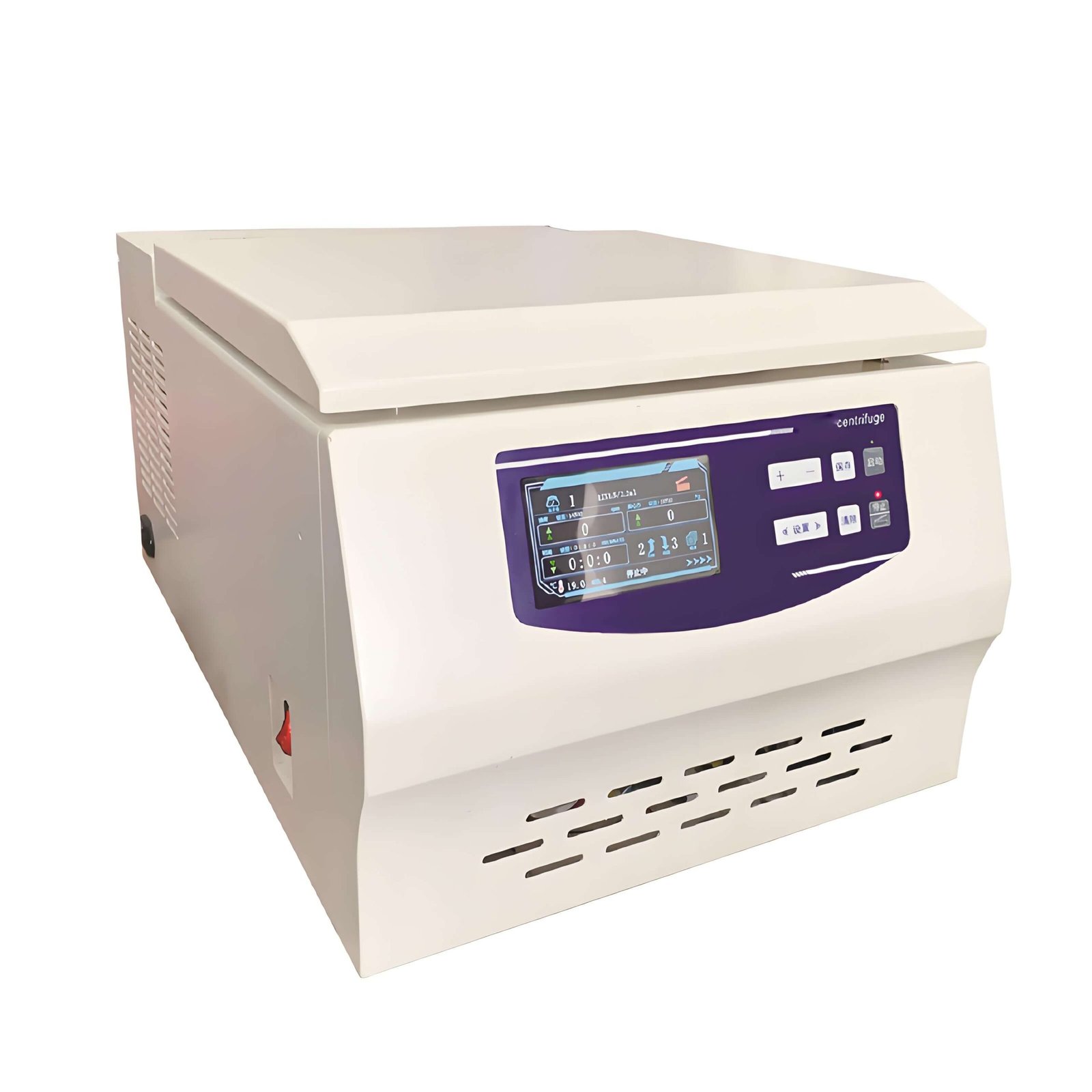

High Speed Refrigerated Centrifuge TG16M

High Speed Refrigerated Centrifuge TG16M

High Speed Refrigerated Centrifuge TG16M





1. The shell is made of cold-rolled steel plate, with surface electrostatic spraying, and the inner liner is made of 304 stainless steel; Clean and durable.
2. It has functions such as timing, speed control, and shutdown alarm; 10 gear up and down speed;
3. Reasonable air duct design to minimize temperature uniformity changes within the workspace;
4. Microcomputer control, touch panel, 5-inch color screen display;
5. Variable frequency motor, maintenance free, pollution-free; The motor adopts imported bearings to reduce noise and extend the service life of the instrument;
6. Unique three-point flexible double-layer secondary support shock absorption reduces vibration and noise;
7. Using high-quality rubber door seals with good sealing performance;
8. It has parameter memory and call recovery functions to protect against data loss caused by power outages or crashes.
9. Equipped with dual protection of electronic and mechanical door locks, it can open the door smoothly even in the event of a power outage.
10. Unbalance and other protective functions; Automatic shutdown when opening the door, safe and reassuring operation;
11. The rotor is made of high-quality aluminum material and can undergo repeated high-pressure sterilization; Equipped with a rotating head automatic locking device, it can quickly achieve rotor safety locking and rotating head replacement; Automatic rotor recognition function;
12. European imported compressor units, environmentally friendly refrigerants;
13. Multiple protection functions for overspeed and overheating;



Model TG16M Voltage AC220V 50HZ 15A
Max Speed 16500r/min Power 1KW
Max Capacity 4x100ml Noise <60dB (A)
Max RCF 18700xg Environment temp 10℃-30℃
Timer Range 1~99min±1S Relative humidity <80%
Temperature Range -20℃~+40℃/±2℃ Centrifugal cavity diameter φ280
Display 5-inch color screen Weight 76kg
Diameter 600×570×370mm



Rotor Parameter
Rotor Type Capacity Max Speed (r/min) Max RCF (xg)
Angle Rotor 12×1.5/2.2ml 16500 18700
Angle Rotor 8/10x5ml 15000 16350
Angle Rotor 24×1.5/2.2ml 14000 18400
Angle Rotor 12x10ml 13000 16240
Angle Rotor 36×1.5/2.2ml 13000 15490
Angle Rotor 48×0.5ml 13000 17570
Angle Rotor 8/10x15ml(sharp) 12000 15290
Angle Rotor 6x50ml 12000 14650
Angle Rotor 4×100ml 11000 13200
Angle Rotor 12x15ml 11000 13520
Angle Rotor 6x50ml(sharp) 10000 10846
Bucket Rotor 2×2×96 holes 4000 1400
