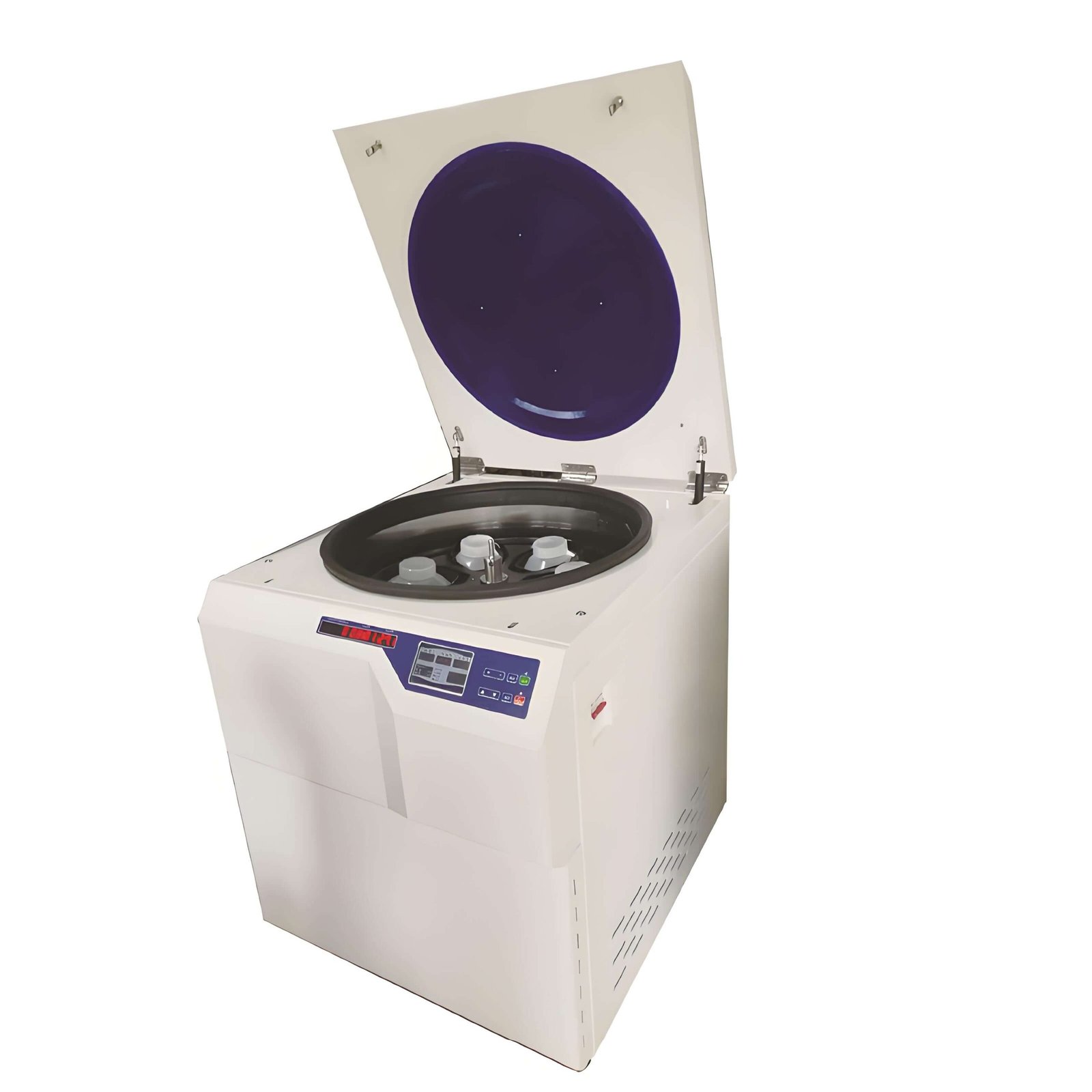

Vertical Large Capacity High Speed Refrigerated Centrifuge TG7H

Vertical Large Capacity High Speed Refrigerated Centrifuge TG7H

Vertical Large Capacity High Speed Refrigerated Centrifuge TG7H





1. The high-power brushless variable frequency motor is directly driven, with high precision, low noise, and extended service life.
2. Microcomputer control, large screen LCD display, touch panel, programmable acceleration/deceleration rate setting, program storage, RCF setting action.
3. Imported compressor units are used for refrigeration, with dual circuit temperature control for cooling and heating. The temperature can be adjusted freely, with high precision, low noise, and the best centrifugal effect.
4. Equipped with electronic door locks, automatic recognition of overspeed, overtemperature, and rotor, and multiple protection functions for imbalance, ensuring personal safety.



Model TG7H
Max Speed 21000r/min
Max RCF 47400xg
Max Capacity 6x500ml
Temperature Range -20℃~+40℃
Temperature Accuracy ±1℃
Timer Range 0~23h59min
Noise <60dB
Power AC220V 50Hz 30A
Weight 220kg
Diameter 780x 680x1220mm(L*W *H)



Rotor Type Capacity Max Speed (r/min) Max RCF (xg)
Angle Rotor 16x10ml 22000 51260
Angle Rotor 6x50ml 20000 43000
Angle Rotor 8x50ml 18000 38200
Angle Rotor 6x70ml 15000 25700
Angle Rotor 8x100ml 12000 19830
Angle Rotor 4x300ml 14000 28150
Angle Rotor 6x300ml 12000 22600
Angle Rotor 6x500ml 10000 18750
Angle Rotor 6x250ml 12000 22800
Continuous Rotor 1000ml 14000 21500
Continuous Rotor 1000ml 16000 28200
Continuous Rotor 3000ml 8000 9530
Continuous Rotor 3000ml 10000 14800
Swing Rotor 2x2x96 holes 4000 2200
Swing Rotor 4x50ml 10000 16200
Swing Rotor 4x30ml 13000 23800
Swing Rotor 4×4x5ml 12000 11900
Swing Rotor 4x750ml 4000 3840
Swing Rotor 6x500ml 4000 3710
